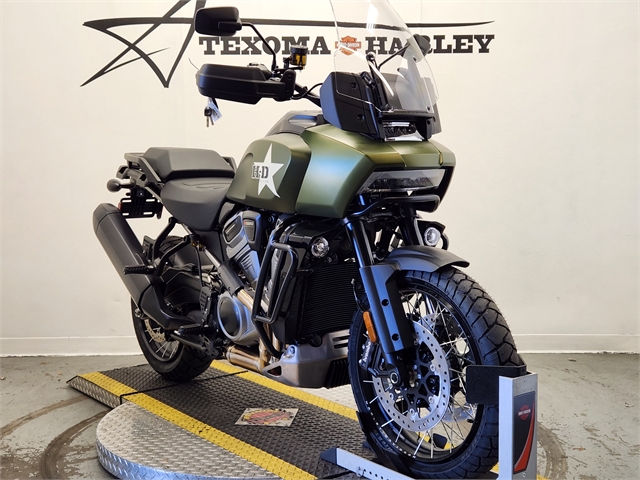

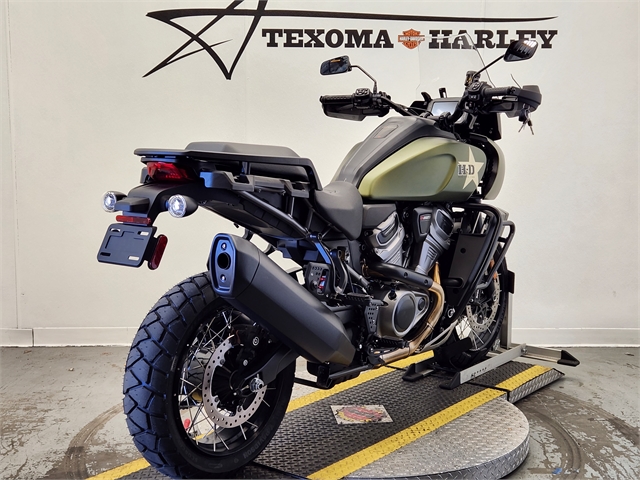

2022 Harley-Davidson Touring Pan America 1250 Special

Stock #321457

588 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2022 Harley-Davidson Pan America . I'm in the area and you can reach me at or by phone at .


DESCRIPTION

The Pan America™ 1250 Special motorcycle is our premier two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.

  • Upright riding position
  • Mid-mount foot controls
  • Passenger seat
  • Tall
  • Frame mounted fairing

THIS IS THE RIGHT BIKE FOR

  • Enthusiasts who require top-of-the-line comfort and performance
  • For riders who see touring as detouring – on road and off
  • Riders looking for power, tech, and capability – that can be used everyday with comfort and control



We’re calling it Special for good reason. Designed to compete with the top-of-the-line ADV bikes in the segment, the 1250 Special is loaded with premium features.

  • Semi-Active Front and Rear Suspension with Vehicle Load Control
  • Tire Pressure Monitoring System (TPMS)
  • Center Stand
  • Multi-Position Rear Brake Pedal
  • Brush Guard
  • Aluminum Skid Plate
  • Daymaker® Signature Adaptive Headlamp
  • Hand Wind Deflectors
  • Heated Hand Grips
  • Steering Damper
  • Factory Installed Option: Adaptive Ride Height
  • Factory Installed Option: Tubeless Laced Wheels

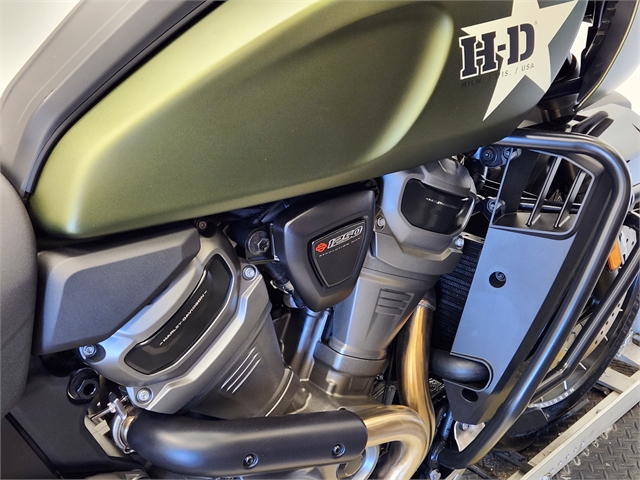

ALL- NEW REVOLUTION® MAX 1250 ENGINE

FOR A NEW GENERATION OF ICONIC BIKES
The next chapter in a century of legendary V-Twins is here. Revolution® Max is a liquid-cooled powertrain with 150 horsepower, full of ample torque, and a surging powerband tuned to maximize rider control.


DUAL PURPOSE POWERTRAIN
The Revolution® Max 1250 is a structural component of the motorcycle chassis, eliminating a traditional frame —?which significantly reduces overall weight and keeps handling taut. This is performance you can feel, with the center of gravity low and the chassis super rigid.


PEAK PERFORMANCE WHERE IT COUNTS
Double Overhead Camshafts (DOHC) facilitate higher peak horsepower, and independent Variable Valve Timing (VVT) broadens the overall powerband and improves torque management. All this to say you’ll have as much low-end acceleration off the line and high-RPM horsepower you can twist.


ADAPTIVE RIDE HEIGHT

REVOLUTIONARY SUSPENSION
Adaptive Ride Height makes its debut on the Pan America 1250 Special. This factory-installed option unlocks confidence you can feel by lowering seat height when stopped, and maintaining a constant, optimum suspension sag at speed by adjusting preload while continuously sensing weight inputs.


SEMI-ACTIVE FRONT & REAR SUSPENSION
190mm (7.48 inches) travel on Showa® BFF™ (Balance Free Forks) fronts and a BFRC™ (Balanced Free Rear Cushion-lite) coil-over rear shock with electronic preload control and semi-active damping. The rear suspension incorporates a linkage system connecting the shock, swingarm, and frame which provides a progressive feel through the stroke.


DIFFERENT BY DESIGN

H-D design and engineering teams have crafted a vision guided by utility, rooted in the spirit of iconic American off-road vehicles. In a landscape of bikes that are achieving uniformity, Pan America is a rugged take where function feeds form in a package that is uniquely Harley-Davidson.


ALL TERRAIN LONG HAULER

Informed by H-D’s touring legacy, Pan America™ is designed to maintain high-speed ride and handling performance even when at the limit of its luggage and weight capacity. Refined, capable and intuitive, Pan America™ is a motorcycle that stays composed and confident no matter how hard you push it.

  • Status:
    New
  • Vehicle:
    2022 Harley-Davidson Touring Pan America 1250 Special
  • VIN:
    1HD1ZES15NB321457
  • Model Number:
    RA1250S
  • Mileage:
    7 miles
  • Color:
    MNR GRN DNM DLX
  • Stock Number:
    321457
  • Title:
    Clear
  • Location:
    Texoma Harley-Davidson
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • Heated Hand Grip Location:
    Driver

ENGINE

  • Bore (in):
    4.13
  • Bore (mm):
    104.9
  • CAN Liters Per Kilometer (Combined):
    5.1
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    13
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    1252
  • Displacement (ci):
    76.4
  • Engine Brand Name:
    Revolution® Max
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    150
  • Horsepower (kW):
    112
  • Horsepower RPM:
    9000
  • Starter:
    Electric
  • Stroke (in):
    2.84
  • Stroke (mm):
    72.1
  • Torque (Ft Lbs):
    69.3
  • Torque (Nm):
    94
  • Torque RPM:
    6750
  • US Miles Per Gallon (Combined):
    46
  • Valve Configuration:
    DOHC

EXTERIOR

  • Brush Guard:
    Yes
  • Chain Guard:
    Yes
  • Engine Case Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Hand Guards:
    Yes
  • Light Guard:
    Yes
  • Stand Type:
    Center

GLASS

  • Folding:
    Yes
  • Height Adjustable:
    Yes
  • Height:
    High
  • Tinted:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    32
  • Seat Height (mm):
    812.8
  • Seat Location:
    Driver and Passenger
  • Seat Type:
    Two-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Brand Name:
    Showa® BFF
  • Front Suspension Size (in):
    47
  • Front Suspension Size (mm):
    1193.8
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    7.5
  • Front Travel (mm):
    190
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    Showa® BFRC
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Steering Damper:
    Yes

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    242.2
  • Dry Weight (lbs):
    534
  • Engine Displacement to Weight (cc):
    2.37
  • Fuel Capacity (gal):
    5.6
  • Fuel Capacity (l):
    21.2
  • Ground Clearance (in):
    6.9
  • Ground Clearance (mm):
    175.3
  • Length (ft):
    7.45
  • Length (ft/ft):
    7
  • Length (ft/in):
    5.4
  • Length (in):
    89.4
  • Length (mm):
    2270.8
  • Wet Weight (kg):
    258.1
  • Wet Weight (lbs):
    569
  • Wheelbase (in):
    62.4
  • Wheelbase (mm):
    1585

TRANSMISSION

  • Gear Ratio (1):
    13.11
  • Gear Ratio (2):
    9.687
  • Gear Ratio (3):
    7.509
  • Gear Ratio (4):
    6.057
  • Gear Ratio (5):
    5.08
  • Gear Ratio (6):
    4.436
  • Number Of Speeds:
    6
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Michelin® Scorcher™ Adventure 120/70 R19 60V
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    V
  • Front Tire Width:
    120
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    Michelin® Scorcher™ Adventure 170/60 R17 72V
  • Rear Tire Aspect Ratio:
    60
  • Rear Tire Speed Rating:
    V
  • Rear Tire Width:
    170
  • Rear Wheel Diameter:
    17
  • Tire Brand:
    Michelin®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
